CHS by AFC

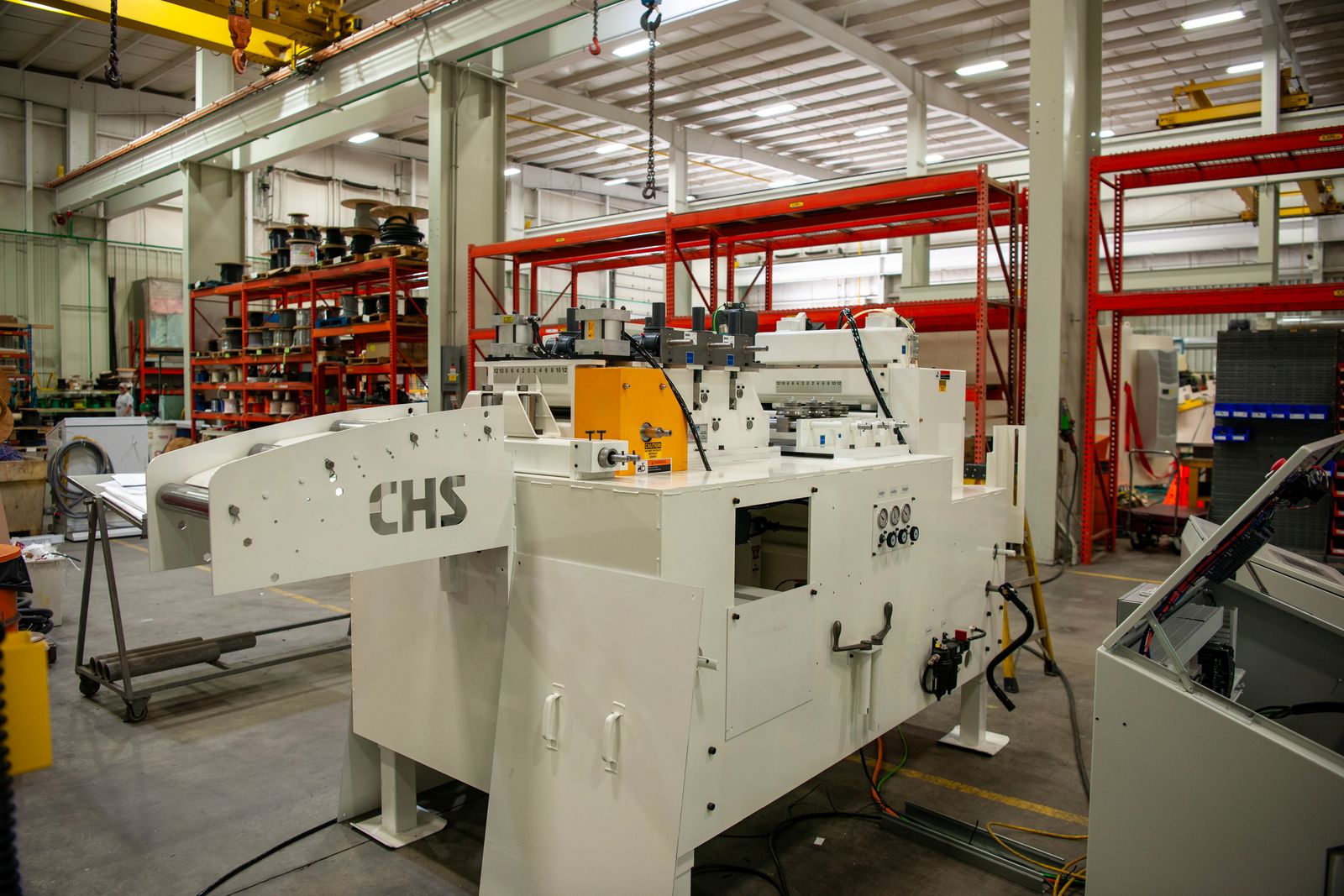

Automatic Feed now supports customers with a select range of Nidec CHS coil handling equipment, including servo roll feeds, reels, straighteners, coil cars, thread tables, and coil positions. This equipment provides proven solutions for loading, feeding, straightening, positioning, and transferring coiled material for pressroom operations.

Known for heavy-duty construction and dependable performance, CHS equipment can be configured to meet application-specific requirements, including coil weight, material width, material thickness, line speed, and press integration. Automatic Feed can assist with replacement equipment, parts, service, and technical support for CHS machinery.

  • Complete coil-handling solutions designed for feeding, straightening, loading, threading, and coil positioning.
  • Integrated support from Automatic Feed, including parts, field service, troubleshooting, and equipment upgrades.
Request a Quote

Features

  • CHS equipment is engineered with durable components and practical automation features to support reliable coil processing.
  • Servo roll feeds with high-performance drive systems, precision gearing, touchscreen controls, job-recipe storage, centralized lubrication, and end-of-stock detection.
  • Straighteners designed for materials up to 0.500 inches thick and widths from 6 to 84 inches, depending on the machine configuration.
  • Coil cars featuring all-steel construction, hydraulic lift and traverse, guide posts, and optional laser coil-centering systems.
  • Thread tables providing a safe, hands-off transition between the straightener and the feed.
  • Coil upenders that rotate coils and other loads through 90 degrees for easier loading and transportation.

More information and capabilities found on CHS website.

Options

  • Available options vary by model and application. Depending on the equipment selected, configurations may include:
  • Hydraulic mandrel expansion
  • Motorized or hydraulic turret rotation
  • Coil guides and hold-down arms
  • Motorized edge guides
  • Material-support tables
  • Press and PLC integration
