One of the most critical operations in coil processing lines is leveling. As materials evolve to meet the demand for lighter, more durable products, the emerging metals are becoming stronger and thinner. AFCO’s new generation of levelers is designed to process steel, aluminum and AHSS. This new generation of cassette levelers is capable of interchanging work roll cartridges with other cartridges of different work roll diameters. Each cassette is designed with a work roll diameter to process specific material properties. This results in increased capacity for a single machine.

With spline connections and hydraulic clamping, cassette changeovers can take less than two minutes and be accomplished without tools.

AFCO’s new generation of Levelers are capable of processing extensive ranges of strengths and thicknesses for Steel, Aluminum and HSS.

Leveler Feature Comparison

XLC-HSS Leveler

The Ultimate Material Flattener

AFC Levelers are built to meet the most demanding flatness requirements in modern coil processing operations. The XLC-HSS Leveler combines precision engineering and robust construction to produce superior material quality, reduce scrap, and enhance productivity when processing Steel, high-strength Steel, and Aluminum.

  • Materials: Steel including HSS, and Aluminum
  • Max Width: 2134mm (84in)
  • Passline Height: 1370mm (54in)
  • Thickness: 0.5mm – 6.0mm
  • Max Line Speed: 90mpm
Request a Quote

Features

  • Automatic hydraulic clamping
  • Spiral grooved intermediate backup rolls
  • 50mm and 65mm cassettes, 13-roll work roll cassettes that are interchangeable between aluminum and steel
  • 6-high configuration
  • 140 Ton bridge capacity
  • 9 Banks of backups of which 7 are adjustable
  • Quick change splines and intermediate bearing housings

Options

  • Automatic cassette change to support ADC
  • 4 High 50mm Cassette

4 High, 50mm Cassette For The XLC-HSS Leveler

The 50mm cassette is very well suited for thin, high strength steel. Features of this cassette include:

  • One (1) Four-High Cassette
  • 13 Work Rolls
  • 9 Banks of Cam Follower Backups

There are no full-length intermediate backup rolls in this configuration. Also, the included u-joint shafts drive an intermediate gearbox for direct coupling of all work rolls to the leveler gearbox.

Product Literature

There are currently no brochures for this product.

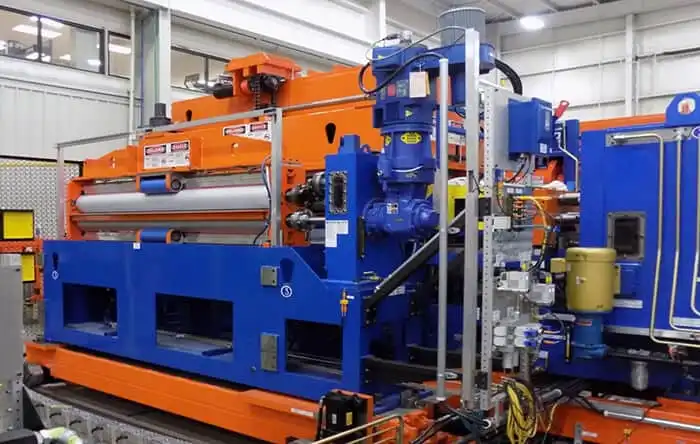

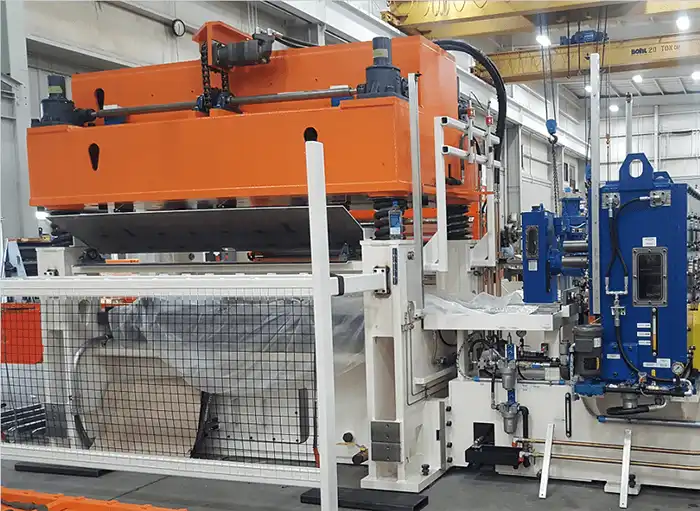

Explore photos of the XLC-HSS Leveler highlighting its robust construction, precision engineering, and production-ready design.

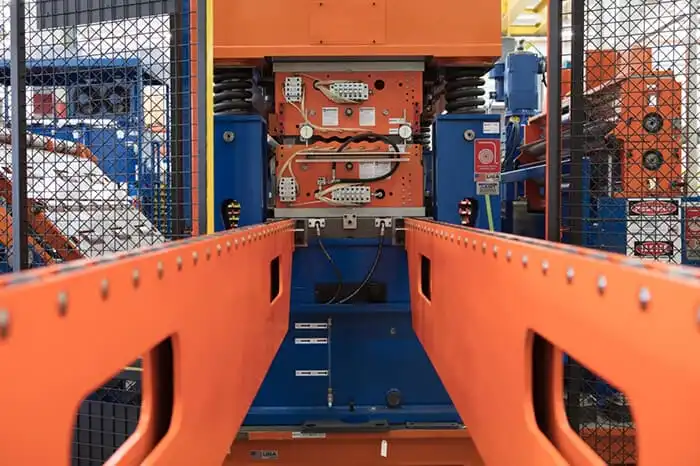

Leveler housing – 140 ton hydraulic screw jack capacity for entry and exit bridge adjustment, with absolute position feedback.

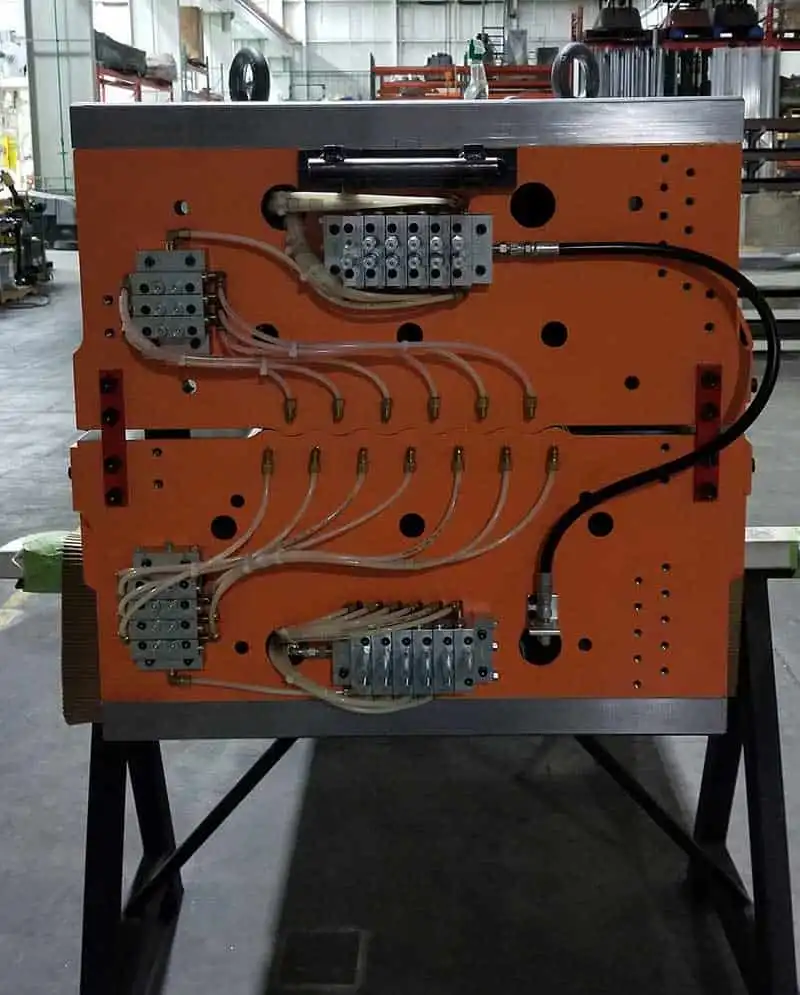

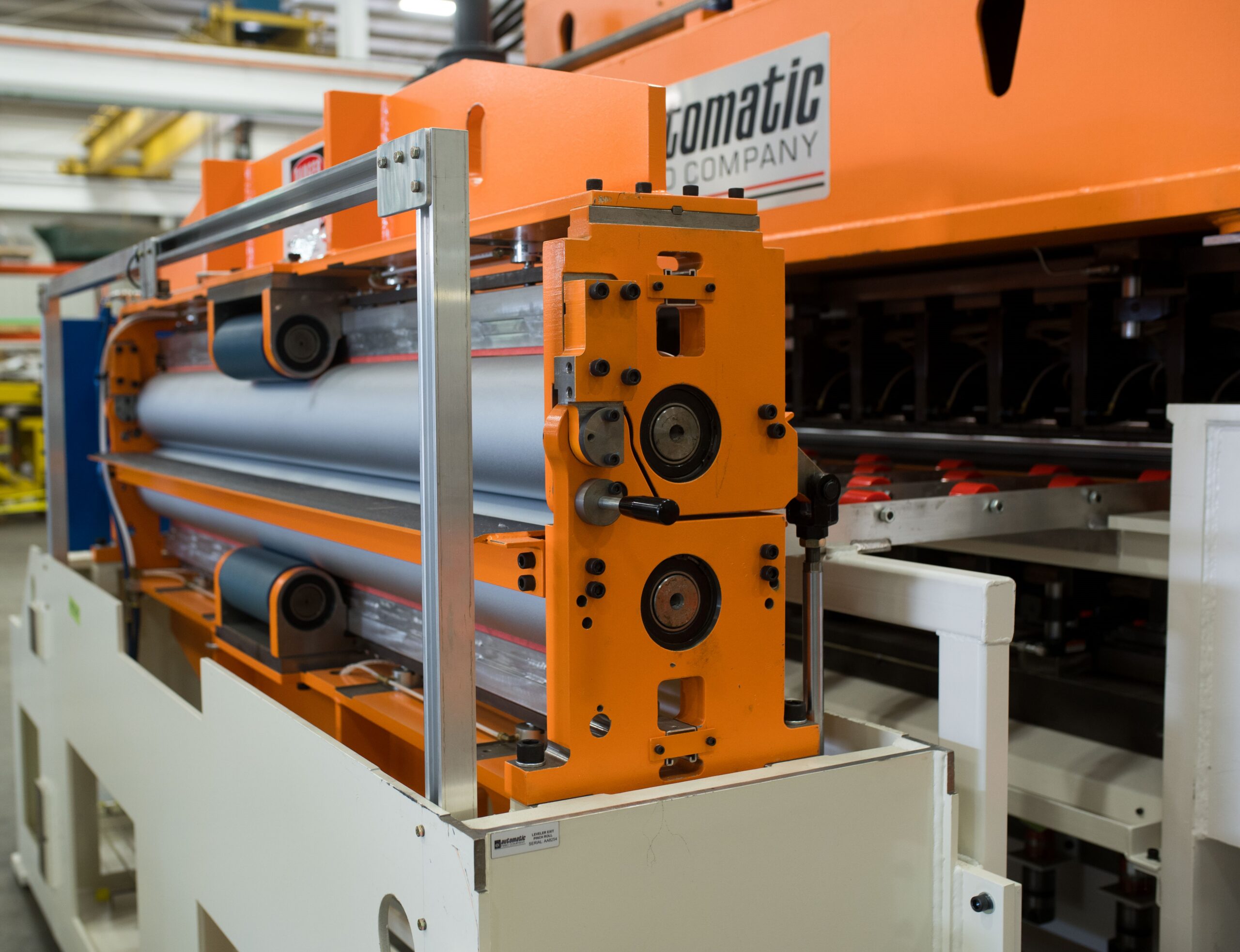

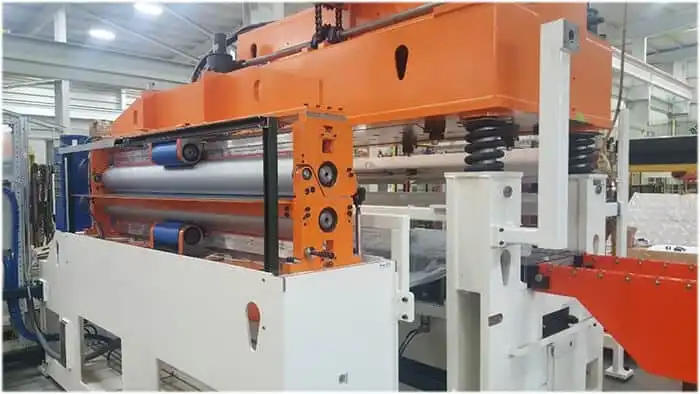

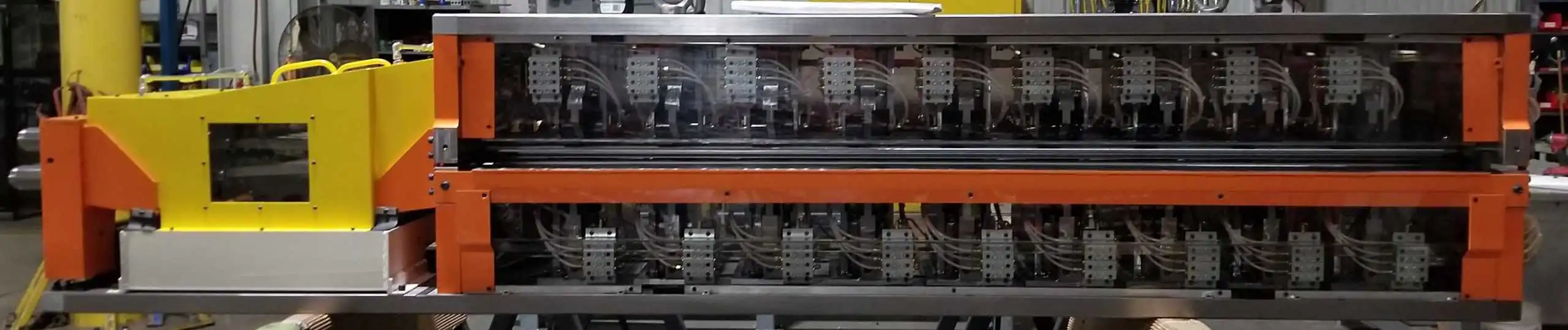

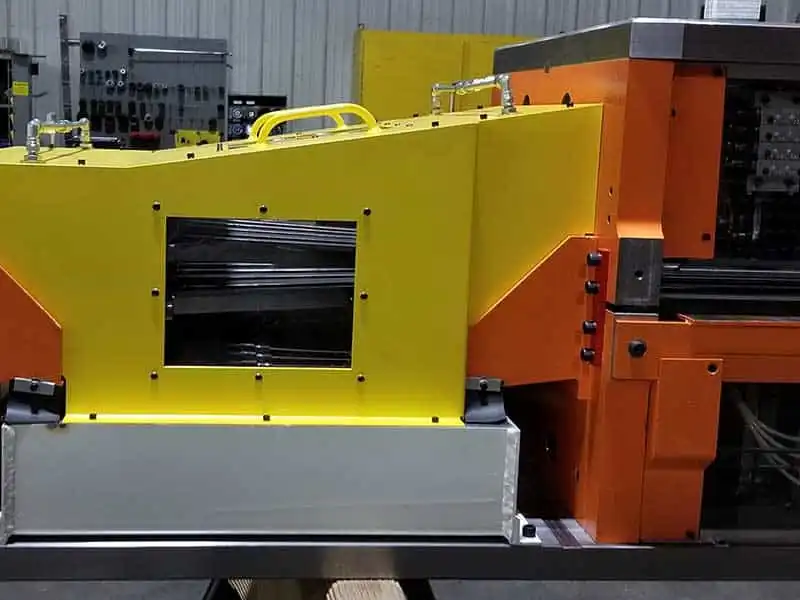

Removable Leveler Cassette – includes upper and lower work rolls, intermediate spiral grooved backup rolls and heavy duty cam follower back-up rolls. Includes individual u-joints for driving each work roll.

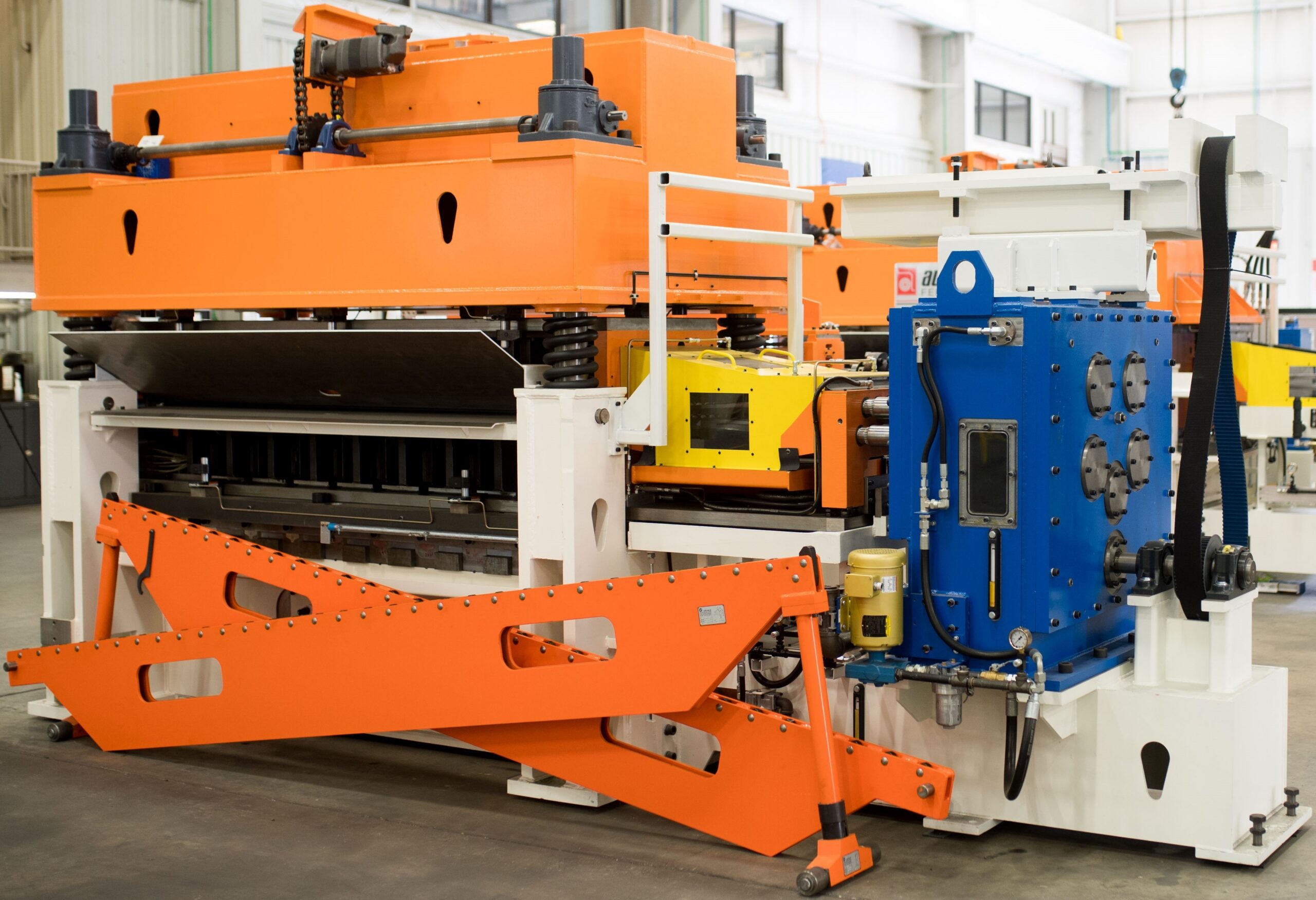

Heavy Duty Gearbox – Designed for precision and accuracy of AC servo driven motor. Sized to accommodate specified leveler capacity ratings and maximum line speeds.
Cassette Style Exit Pinch Roll – Rolls are driven with an independent AC servo motor.

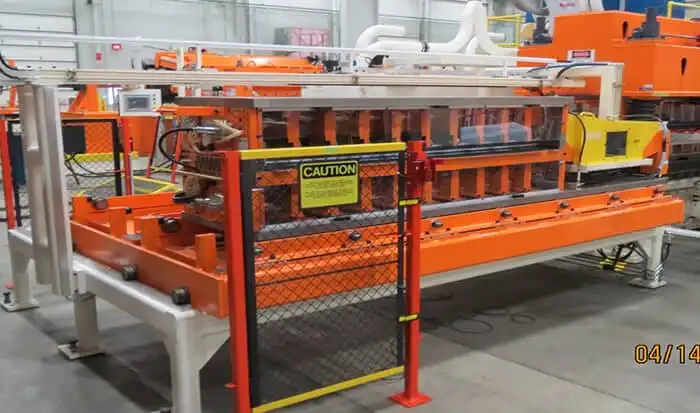

Optional Automatic Cassette Change is foremost in time savings – Supports ADC.

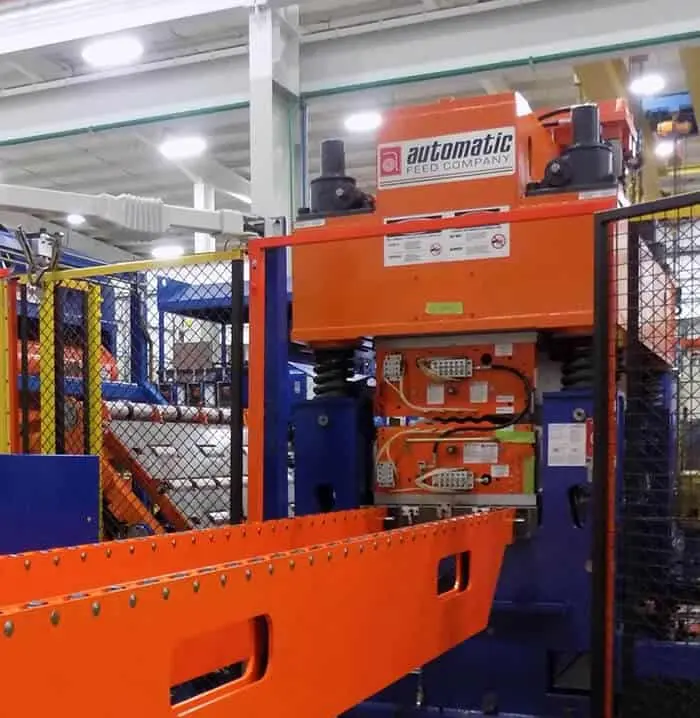

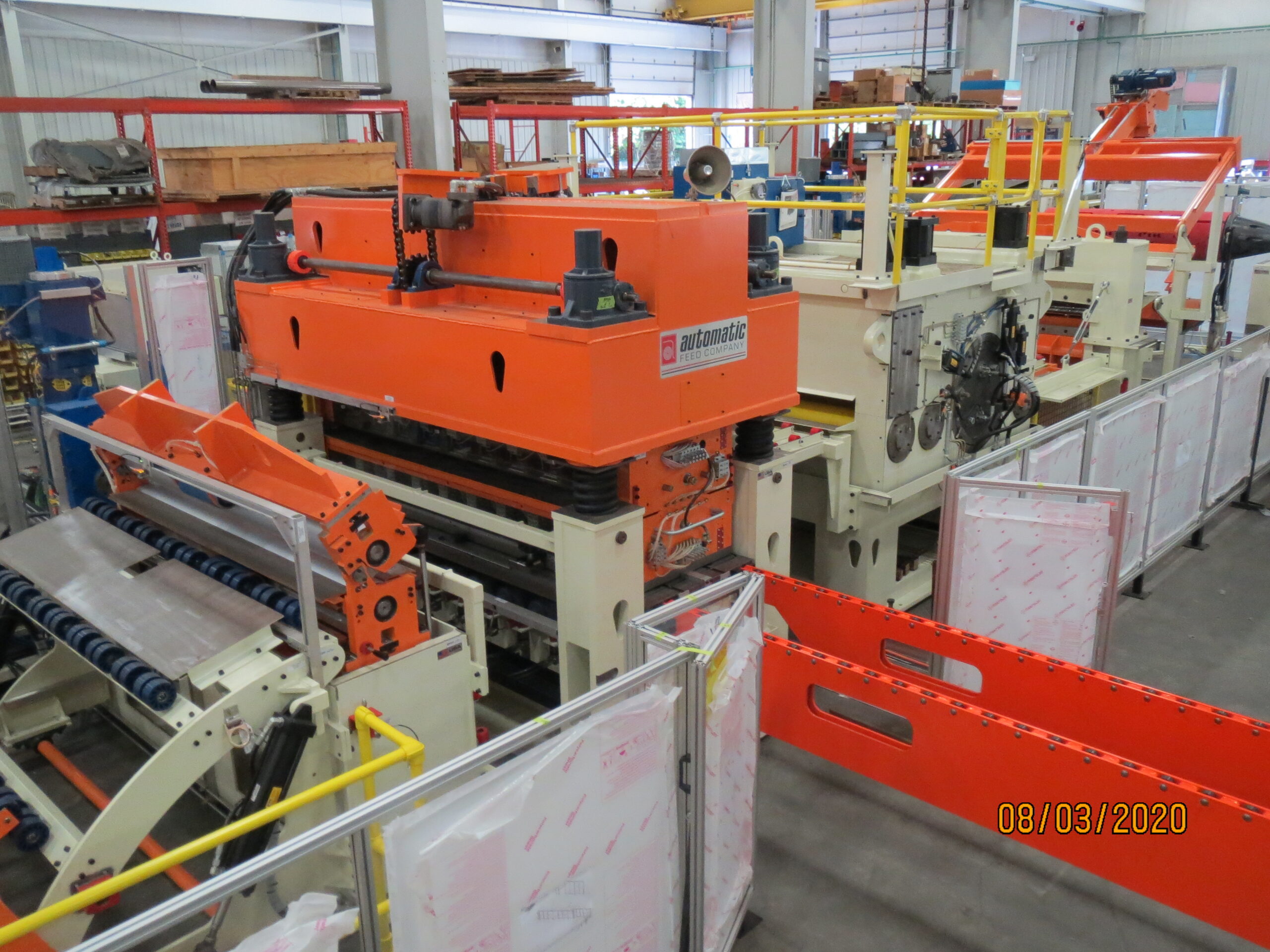

Industrial metal straightening machine with orange frame and conveyor system in a factory setting, branded Automatic Feed Company
Specifically designed to process today’s advanced Steel, Aluminum and HSS, capable of handling a vast range of strengths and thicknesses and meets laser welding flatness tolerances.
Leveler housing – 140 ton hydraulic screw jack capacity for entry and exit bridge adjustment, with absolute position feedback.
Removable Leveler Cassette – includes upper and lower work rolls, intermediate spiral grooved backup rolls and heavy duty cam follower back-up rolls. Includes individual u-joints for driving each work roll.
Heavy Duty Gearbox – Designed for precision and accuracy of AC servo driven motor. Sized to accommodate specified leveler capacity ratings and maximum line speeds.
Cassette Style Exit Pinch Roll – Rolls are driven with an independent AC servo motor.
Optional Automatic Cassette Change is foremost in time savings – Supports ADC.
Industrial metal straightening machine with orange frame and conveyor system in a factory setting, branded Automatic Feed Company
Specifically designed to process today’s advanced Steel, Aluminum and HSS, capable of handling a vast range of strengths and thicknesses and meets laser welding flatness tolerances.
Industrial metal straightening machine with orange frame and conveyor system in a factory setting, branded Automatic Feed Company

HD-HSS Leveler

The Ultimate Precision Material Flattener

AFCO Leveler are engineered to deliver exceptional precision flatness for demanding Steel, high-strength Steel, and Aluminum processing applications. The HD-HSS Leveler combines robust construction with advanced leveling technology to produce superior material quality, consistent results, and reliable performance in high-production environments.

  • Materials: Steel including HSS, and Aluminum
  • Max Width: 2134mm (84in)
  • Passline Height: 1370mm (54in)
  • Thickness: 0.5mm – 6.0mm
  • Max Line Speed: 90mpm
Request a Quote

Features

  • Automatic hydraulic clamping
  • Spiral grooved intermediate backup rolls
  • 50mm, 13-roll work roll cassettes
  • 9 Banks of fixed backups
  • 6-high configuration
  • 80 Ton bridge capacity

Options

  • 7 interior adjustable backups
  • Space saving overhead motor with timing belt pulley

Product Literature

There are currently no videos of this product.

Product Videos

There are currently no videos of this product.

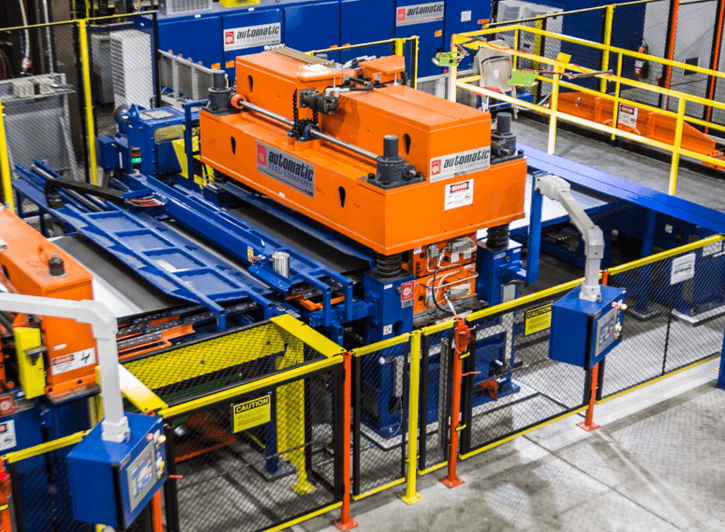

Browse images of the HD-HSS Leveler showcasing its precision-engineered design, key components, and integrated line installation.
